How to connect an external audio device to an HD848 camera
AvertX does not endorse, recommend, or sponsor third-party products.
HD848 cameras can provide audio capabilities when properly configured. There are a variety
of audio connectors and configuration options that are wire-based, depending on the external/3rd party devices that may be used.

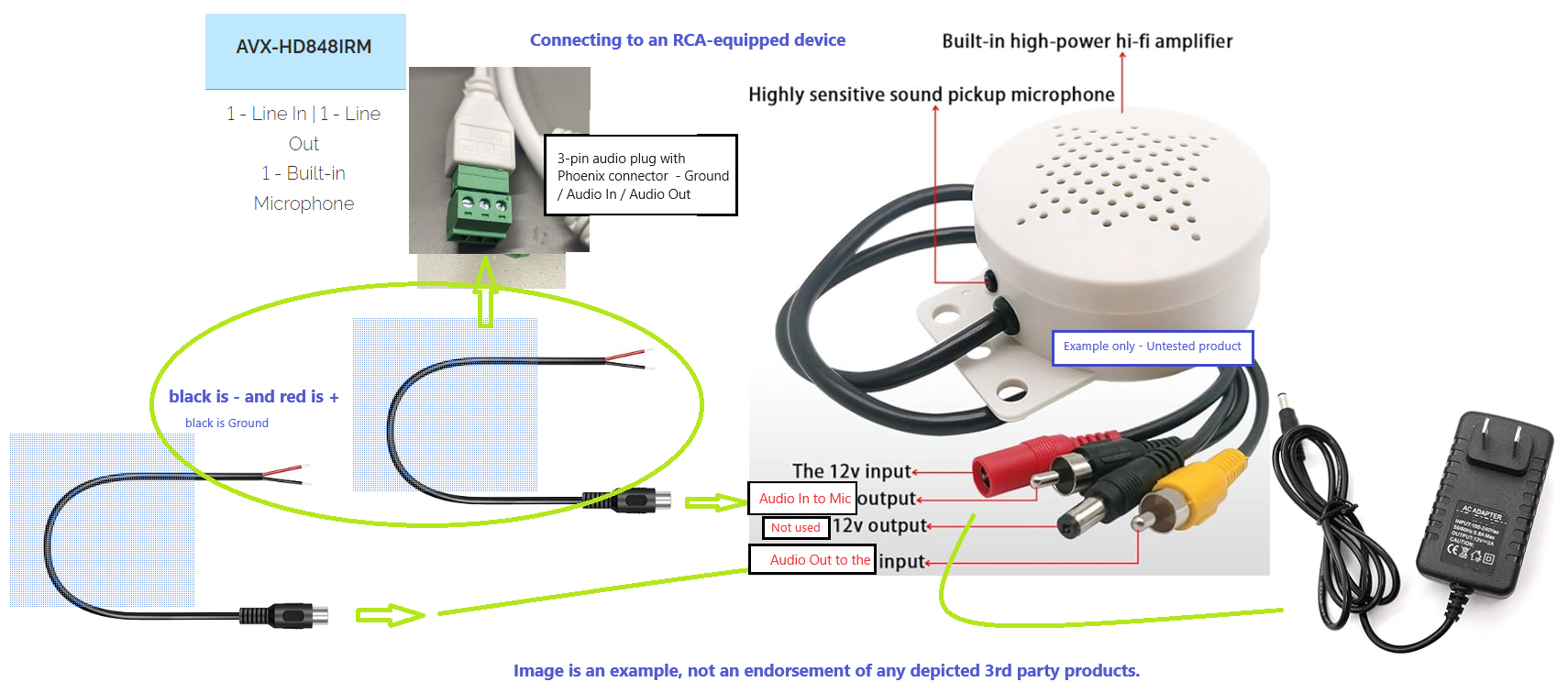

The diagram below is an example to
help understand how audio might be connected if configuring an HD848 to an
audio device using RCA connectors:
Refer to this article to help
with the camera’s software
audio setup.

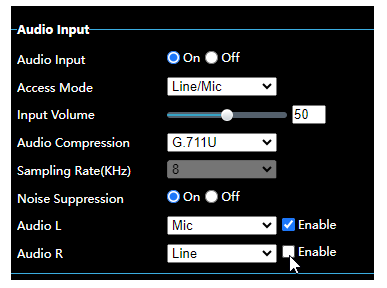

If you choose to use
an external microphone (optional since the HD848 has one built-in), switch the
camera to use the Line MIC from within the camera’s
administrative user interface (UI).
