A800+ ProConnect 8 Channel HD+ Network Video Recorder A800+ ProConnect 8 Channel HD+ Network Video Recorder

A800+ ProConnect 8 Channel HD+ Network Video Recorder

$1,295.00
SKU:
AVX-PC084T-C
Operating System:
Embedded Linux
Local Display Resolution:
Auto-detect HDMI®, up to 4K
PoE Camera Ports:
8
Total Number of Channels with External Switch*:
24
Alarm Sensor Inputs:
4
Relay Outputs:
2
Image Compression:
H.264 Enhanced Codec
Recording/Playback Resolutions and Rates:
4MP HD+ resolution @ 30 images per second on all channels; 4K UHD resolution @ 10 images per second on all channels

Motion Detection:
AvertX Cameras, Adjustable Thresholds and Motion Fields Configurable
Supported IP Cameras:
AvertX and ONVIF Profile S Cameras
Cloud Video Access:
Yes, viewing and sharing with AvertX Connect
Remote Device Apps:
Free AvertX apps for Apple TV iPhone, iPad, Android Smartphones and Tablets
Remote Access Browser Support:
Chrome, Safari, and Firefox on Windows and Mac OSX
Pan Tilt Zoom (PTZ) Control:
AvertX PTZ cameras and compliant IP PTZs
Recording Mode:
Continuous + Motion, Continuous, Motion, Schedule
Playback Search:
Preview Search, Date/Time, Event Search
Remote Device Connection:
AvertX Connect
Security:
Local/remote user management, Encrypted passwords, uPnP disabled
Digital Signature Support:
Digital Watermark
Internal Storage:
Up to 20TB with factory upgrade
External USB Hard Drive:
Backup only; not supported for video recording
Rack Mountable:
Yes, 1U Bracket included
Operating Temperature:
32°F - 104°F (0°C - 40°C)
Operating Relative Humidity:
10% - 90% Non-condensing
Max Power Consumption:
195W
Dimensions:
17.25" W x 13.5" L x 1.875" H
(438mm x 343mm x 44.5mm)
Warranty:
2 year
Support:
Free AvertX Pro Team Support for Life
Operating Fan Noise:
Approx. 45 db @ 6ft (equivalent to overhead ceiling fan)
Note:
*External switch not included **System default set at 15 ips to optimize storage retention
Current stock: 0

Cart Subtotal: $0.00

View Cart Checkout

The Professional Difference

Experience the Professional difference with the AvertX ProConnect Video Security Platform. Take advantage of exciting new features like video export to the cloud and a dedicated Apple TV app to access and share video like never before. AvertX is constantly developing our ProConnect software, so you can enjoy new features and improvements for years to come. AvertX products are supported by our US‐based PRO Team and backed by a standard two‐year warranty.

Learn More

Automated
Setup

Startup wizard makes networking a breeze

Multibrowser
Support

Attractive and intuitive user experience in all major browsers

Pro Team
Support

Free support for the life of your system! Need help? Call the Pro Team!

Expandable to
24 Channels

Record up to 24 Cameras using an external PoE Switch

4K UHD
Recording

Powerful processor records UHD video from 4K cameras

Pro-Grade
Hard Drives

Surveillance-rated hard drive for long life and dependability

Cyber
Secure

Military-grade encryption to keep your data safe and secure

Integrated
PoE Switch

Integrated PoE switch, eliminating the need for an external switch.

Future Proof

Future Proof Your Investment: Automated Software Updates

The most important part of your video security system investment is the software that powers it. AvertX is constantly developing the ProConnect platform, so you will benefit from new features, improved performance, and cybersecurity updates for years to come and without a hidden subscription fee. When a new update is released you are notified and can apply the update with a single click of a button. Recent updates have added mobile support for two-way audio, fisheye camera dewarping, and automatically setting strong, unique camera passwords.


Cyber-Secure Architecture

Is your video system cyber-secure or is it creating a vulnerability at your home or business? Recently, many IP cameras and video recorders have been linked to widespread cyber-attacks. AvertX software has been developed with cyber security as a priority. ProConnect recorders automatically establish a trusted outbound connection with the AvertX Cloud for a hassle-free and secure networking experience. All metadata transmitted over the Internet is secured using military-grade encryption. AvertX systems automatically sets unique passwords during initial setup, making our system compliant with California's new cyber-security law, SB327. Read more about AvertX Cyber Security.

The AvertX Cloud: A Simple and Convenient Approach to Security

The AvertX Cloud enables powerful new tools and features with a user experience as easy as watching a movie online!

  • Save, access and share video clips securely via the cloud
  • Set up user accounts for family, employees, or law enforcement and instantly grant and revoke access—all the way down to the individual camera!
  • Manage multiple recorders from single account and a centralized web interface
  • Receive automated software release notifications and easily keep your system up to date and safe from evolving cyber threats
  • Free access for the life of your system!
Learn More
Apple TV

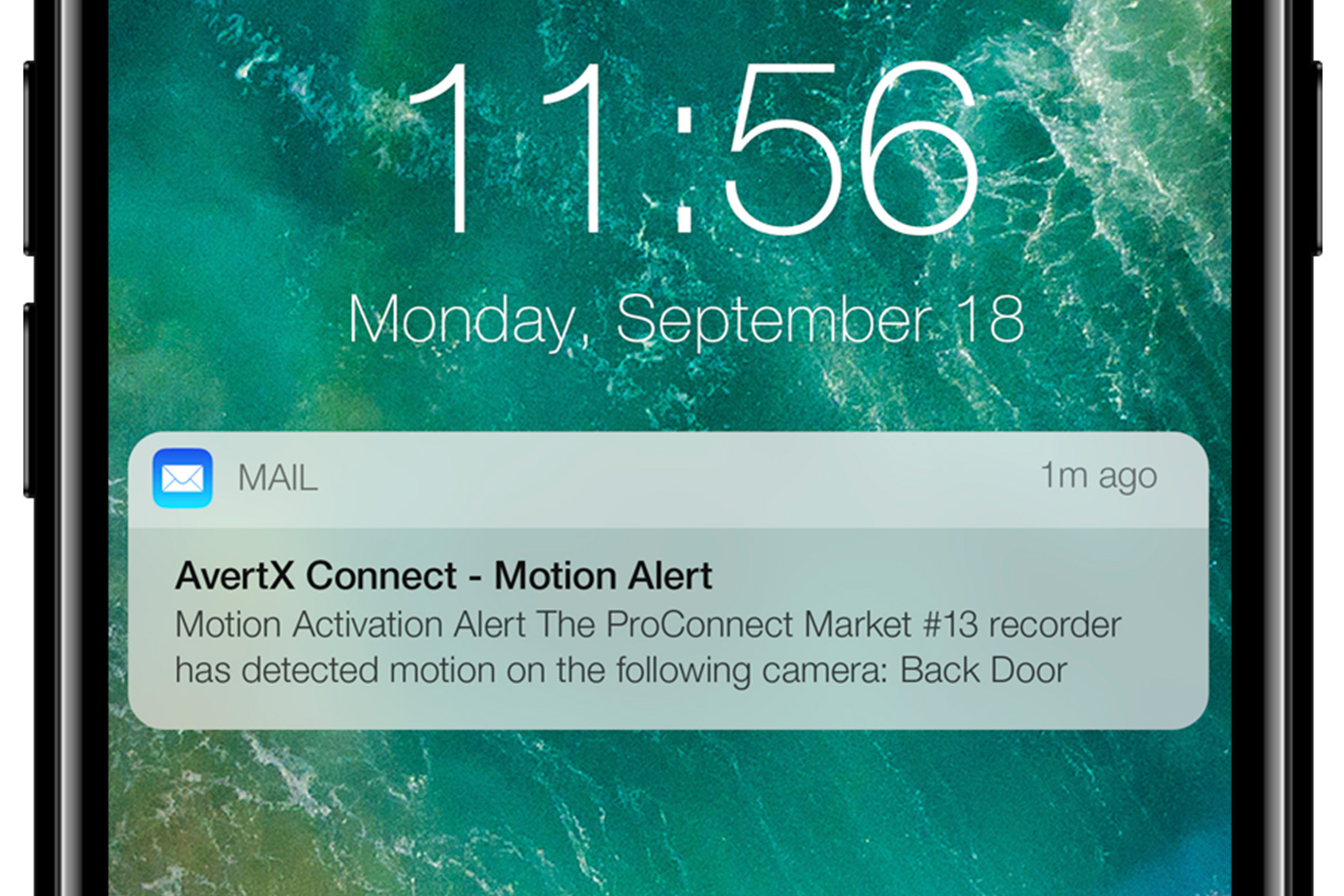

Smart Alerts

You don’t need to watch your cameras all day, the AvertX Cloud will let you know when something needs your attention! Receive a push notification or email alert when a person or vehicle is detected, when sensors are activated, or when cameras or recorders are offline. Our powerful alert programming interface enables you to set the hours or days you would like to receive alerts so you only receive alerts when they matter.

ProConnect Interface

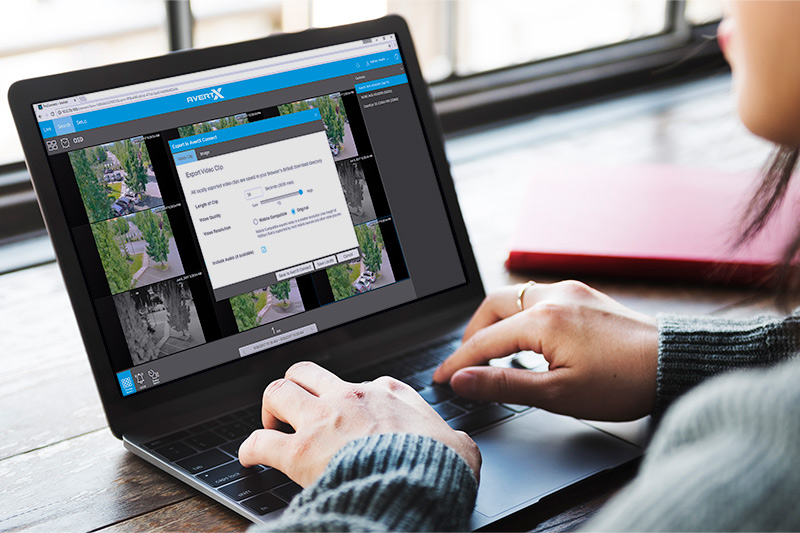

Fast and Easy Search and Export

Often the most frustrating part of owning a surveillance system is finding the video you need. AvertX ProConnect features multiple options for quickly and easily finding video clips, including Event Search, Timeline Search, and our exclusive Thumbnail Search. Using Thumbnail Search, you can find events with a visual difference before and after the event, like theft or vandalism, in a matter of seconds. Once you’ve found the video clip you need, all it takes is a few clicks to export to your AvertX Connect for secure storage or easy sharing via email. No more searching for a thumb drive for exports!

Simple and Intuitive Software Developed in the USA

Most of today's video surveillance devices run complicated software designed and developed by overseas Original Equipment Manufacturers. The result is an overly complicated and frustrating user experience. AvertX ProConnect software is developed in the USA for hassle free operation and the ultimate user experience. If your priorities are reliability, cyber security, and ease of use please call the AvertX Pro team for a live product demonstration.

Apple TV

Apple TV Support for Home Viewing

The AvertX ProConnect Apple TV app allows you to display live video from your ProConnect recorder from the comfort of your living room or anywhere you have an Apple TV. Securely install your recorder anywhere in your home or business and easily view live video on any TV without the hassle or complexity of running an HDMI® cable from your recorder.

*Requires 4th Generation Apple TV
Expand your system

Business expanding? So can your system!

Don’t buy a new system because you need a couple of additional cameras. Every new AvertX recorder can record up to 24 cameras with a separate Power Over Ethernet (PoE) switch.* Just plug a PoE switch into the External Switch Port on the back of the recorder to add additional cameras! You can even simplify installation by placing a separate PoE switch and multiple cameras in an outbuilding or other remote location and run a single Ethernet cable back to your recorder.

*not included

Do-It-Yourself Professional Installation

AvertX offers everything you need for a clean, professional looking installation. All of our recorders have an extra gigabit ethernet port for an external PoE switch and can tie in to existing network infrastructure for faster installation. They even include rack ears and are server room-ready! AvertX offers an extensive selection of camera mounting accessories for a clean and secure installation in any location. Got a large project? Don't forget about AvertX for bulk sales! Contact AvertX Support to discuss your needs.

Multiview

Multi Recorder Management

AvertX's Multi Recorder Management puts all of your recorders at your fingertips. AvertX Connect’s Recorder List keeps all your recorders organized in one location, accessible on the cloud from a computer at any location. Just click to open your home and office recorders in browsers side by side to keep watch. Business owners can set up two monitors (or more), and keep an eye on all of your locations


Pain Free Installation

AvertX has designed its system with integral features to simplify installation. An integrated PoE switch means you only need to run single cable your cameras. At startup, the ProConnect NVR recognizes your cameras and starts recording. The key to a successful installation is planning. Please visit our DIY Corner for resources to choose the appropriate system for your home or business and tips and tricks for installing and getting the most out of your system. If you have any questions about your installation, call the AvertX PRO Team!

AvertX Pro Team

Five-Star AvertX PRO Team Support

We have a professional to help you with every step of the process. Want to understand the AvertX Cloud difference? Call our PRO Team. Need help designing a system and selecting the right cameras? Call our PRO Team. Need help with setup? Call our PRO Team. Selecting and installing a system can be intimidating. Our PRO Team is here to help for the life of your system! Call us at 855-228-3789 with any questions or for a live product demo!

Additional Info

Specifications

SKU:
AVX-PC084T-C
Operating System:
Embedded Linux
Local Display Resolution:
Auto-detect HDMI®, up to 4K
PoE Camera Ports:
8
Total Number of Channels with External Switch*:
24
Alarm Sensor Inputs:
4
Relay Outputs:
2
Image Compression:
H.264 Enhanced Codec
Recording/Playback Resolutions and Rates:
4MP HD+ resolution @ 30 images per second on all channels; 4K UHD resolution @ 10 images per second on all channels

Motion Detection:
AvertX Cameras, Adjustable Thresholds and Motion Fields Configurable
Supported IP Cameras:
AvertX and ONVIF Profile S Cameras
Cloud Video Access:
Yes, viewing and sharing with AvertX Connect
Remote Device Apps:
Free AvertX apps for Apple TV iPhone, iPad, Android Smartphones and Tablets
Remote Access Browser Support:
Chrome, Safari, and Firefox on Windows and Mac OSX
Pan Tilt Zoom (PTZ) Control:
AvertX PTZ cameras and compliant IP PTZs
Recording Mode:
Continuous + Motion, Continuous, Motion, Schedule
Playback Search:
Preview Search, Date/Time, Event Search
Remote Device Connection:
AvertX Connect
Security:
Local/remote user management, Encrypted passwords, uPnP disabled
Digital Signature Support:
Digital Watermark
Internal Storage:
Up to 20TB with factory upgrade
External USB Hard Drive:
Backup only; not supported for video recording
Rack Mountable:
Yes, 1U Bracket included
Operating Temperature:
32°F - 104°F (0°C - 40°C)
Operating Relative Humidity:
10% - 90% Non-condensing
Max Power Consumption:
195W
Dimensions:
17.25" W x 13.5" L x 1.875" H
(438mm x 343mm x 44.5mm)
Warranty:
2 year
Support:
Free AvertX Pro Team Support for Life
Operating Fan Noise:
Approx. 45 db @ 6ft (equivalent to overhead ceiling fan)
Note:
*External switch not included **System default set at 15 ips to optimize storage retention
Reviews

Documents and Downloads

Quick Start Guide     User Manual     Product Specifications    Download Firmware    Network Requirements
